| 技術數據 | |||||

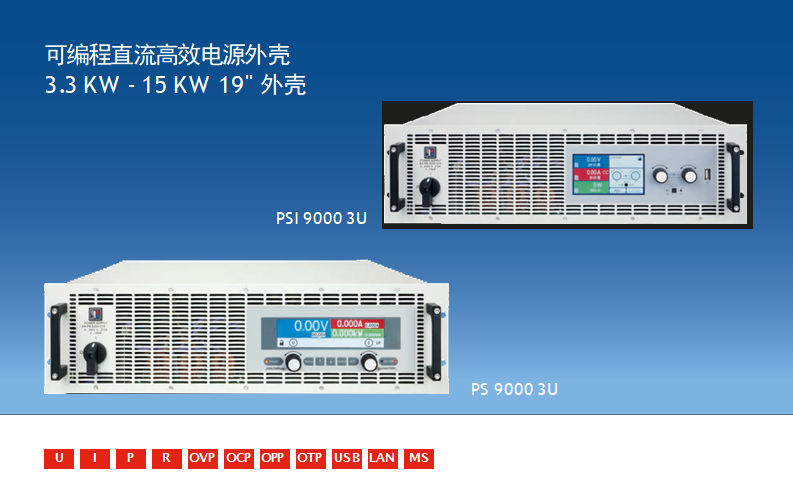

| PS 9000 3U 系列 | PSI 9000 3U系列 | PSI 9000 WR系列 | |||
| 交流端供電 | 標準型號：400 V, -10/+15%, 2/3ph | 標準型號：400 V, -10/+15%, 2/3ph 208 V型號：208 V, ±10%, 2/3ph | 208 V型號：208 V, ±10%, 2/3ph 380/400/480 V, ±10% | ||
| 交流端子 | 多相, 45...65 Hz, 功率因素 >0.99 | ||||
| 電壓精度 | ≤額定值的0.1% | ||||
| 電流精度 | ≤額定值的0.2% | ||||
| 功率精 | ≤額定值的1% | ||||
| 保護功能 | 過溫、過壓、過流、過功率、電力故障 | ||||
| 安規標準 | EN 61010 (電氣安全), EN 61000-6-3 等級 B, EN 61000-6-2 (EMI與噪音抑制), TüV認證 | ||||
| 制冷方式 | 溫控風扇(可選水冷版) | ||||
| 尺寸 (寬 x 高 x 深) | 19" x 3 U x 609 mm | 19" x 3 U x 609 mm | 19" x 3 U x 609 mm | ||
| 概覽 | |||||||||
| 系列 | 額定功率級 | 額定電壓級 | 額定電流級 | R模式 | 高度 | FG (1 | MS (2 | 顯示器 | 可選數字接口 |
| PS 9000 3U | 5 / 10 / 15 kW | 40 - 1500 V | 20 - 510 A | 無 | 3 U | 無 | 無 | TFT | GPIB |
| PSI 9000 3U | 5 / 10 / 15 kW | 40 - 1500 V | 20 - 510 A | 有 | 3 U | 有 | 有 | TFT觸摸屏 | GPIB, CAN, Profibus, Ethernet,CANopen, EtherCAT, RS232 |
| PSI 9000 WR | 5 / 10 / 15 kW | 60 - 1500 V | 20 - 510 A | 有 | 3 U | 有 | 有 | TFT觸摸屏 | GPIB, CAN, Profibus, Ethernet,CANopen, EtherCAT, RS232 |
| 1 Function generator-函數發生器 (2 Master-slave -主從操作模式 |
| 型號 | PSI 9040-170 3U PS 9040-170 3U | PSI 9060-170 WR | PSI 9080-170 3U PSI 9080-170 WR PS 9080-170 3U | PSI 9200-70 3U PSI 9200-70 WR PS 9200-70 3U | PSI 9360-40 3U PSI 9360-40 WR PS 9360-40 3U | PSI 9500-30 3U PSI 9500-30 WR PS 9500-30 3U |
| 電壓 | 0...40 V | 0...60 V | 0...80 V | 0...200 V | 0...360 V | 0...500 V |
| 電流 | 0...170 A | 0...170 A | 0...170 A | 0...70 A | 0...40 A | 0...30 A |
| 功率 | 0...3300 W | 0...5000 W | 0...5000 W | 0...5000 W | 0...5000 W | 0...5000 W |
| 隔離電壓 | ±400 V / ±400 V | ±400 V / ±400 V | ±400 V / ±400 V | ±400 V / ±600 V | ±400 V / ±600 V | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) |
| 重量 | 17 kg | 18 kg | 17 kg 18 kg (WR) | 17 kg 18 kg (WR) | 17 kg 18 kg (WR) | 17 kg 18 kg (WR) |
| 型號 | PSI 9750-20 3U PSI 9750-20 WR PS 9750-20 3U | PSI 9040-340 3U PS 9040-340 3U | PSI 9040-510 3U PS 9040-510 3U | PSI 9060-340 WR | PSI 9080-340 3U PSI 9080-340 WR PS 9080-340 3U | PSI 9200-140 3U PSI 9200-140 WR PS 9200-140 3U |
| 電壓 | 0...750 V | 0...40 V | 0...40 V | 0...60 V | 0...80 V | 0...200 V |
| 電流 | 0...20 A | 0...340 A | 0...510 A | 0...340 A | 0...340 A | 0...140 A |
| 功率 | 0...5000 W | 0...6600 W | 0...10000 W | 0...10000 W | 0...10000 W | 0...10000 W |
| 隔離電壓 | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) | ±400 V / ±400 V | ±400 V / ±400 V | ±400 V / ±400 V | ±400 V / ±400 V | ±400 V / ±600 V |
| 重量 | 17 kg 18 kg (WR) | 24 kg | 30 kg | 25 kg | 24 kg 25 kg (WR) | 24 kg 25 kg (WR) |
| 型號 | PSI 9360-80 3U PSI 9360-80 WR PS 9360-80 3U | PSI 9500-60 3U PSI 9500-60 WR PS 9500-60 3U | PSI 9750-40 3U PSI 9750-40 WR PS 9750-40 3U | PSI 91000-30 3U PS 91000-30 3U | PSI 9060-510 WR | PSI 9080-510 3U PSI 9080-510 WR PS 9080-510 3U |
| 電壓 | 0...360 V | 0...500 V | 0...750 V | 0...1000 V | 0...60 V | 0...80 V |
| 電流 | 0...80 A | 0...60 A | 0...40 A | 0...30 A | 0...510 A | 0...510 A |
| 功率 | 0...10000 W | 0...10000 W | 0...10000 W | 0...10000 W | 0...15000 W | 0...15000 W |
| 隔離電壓 | ±400 V / ±600 V | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) | ±725 V / ±1000 V | ±400 V / ±400 V | ±400 V / ±400 V |
| 重量 | 24 kg 25 kg (WR) | 24 kg 25 kg (WR) | 24 kg 25 kg (WR) | 25 kg | 31 kg | 30 kg 32 kg (WR) |
| 型號 | PSI 9200-210 3U PSI 9200-210 WR PS 9200-210 3U | PSI 9360-120 3U PSI 9360-120 WR PS 9360-120 3U | PSI 9500-90 3U PSI 9500-90 WR PS 9500-90 3U | PSI 9750-60 3U PSI 9750-60 WR PS 9750-60 3U | PSI 91000-40 3U PSI 91000-40 WR PS 91000-40 3U | PSI 91500-30 3U PSI 91500-30 WR PS 91500-30 3U |
| 電壓 | 0...200 V | 0...360 V | 0...500 V | 0...750 V | 0...1000 V | 0...1500 V |
| 電流 | 0...210 A | 0...120 A | 0...90 A | 0...60 A | 0...40 A | 0...30 A |
| 功率 | 0...15000 W | 0...15000 W | 0...15000 W | 0...15000 W | 0...15000 W | 0...15000 W |
| 隔離電壓 | ±400 V / ±600 V | ±400 V / ±600 V | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) | ±725 V / ±1000 V ±1500 V / ±1800 V (WR) |
| 重量 | 30 kg 32 kg (WR) | 30 kg 32 kg (WR) | 30 kg 32 kg (WR) | 30 kg 32 kg (WR) | 30 kg 32 kg (WR) | 30 kg 32 kg (WR) |
數據表 datasheet
使用手冊
更多信息，請聯系深圳市創興恒技術有限公司，Sales@forenext.com, +86 0755-23012596。謝謝！
